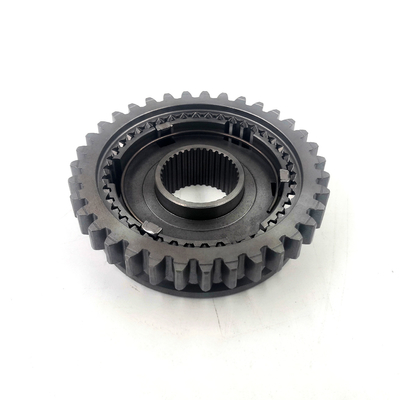

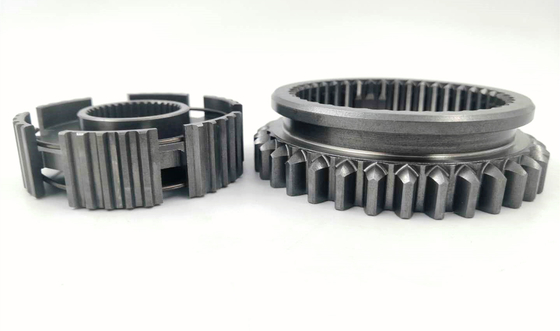

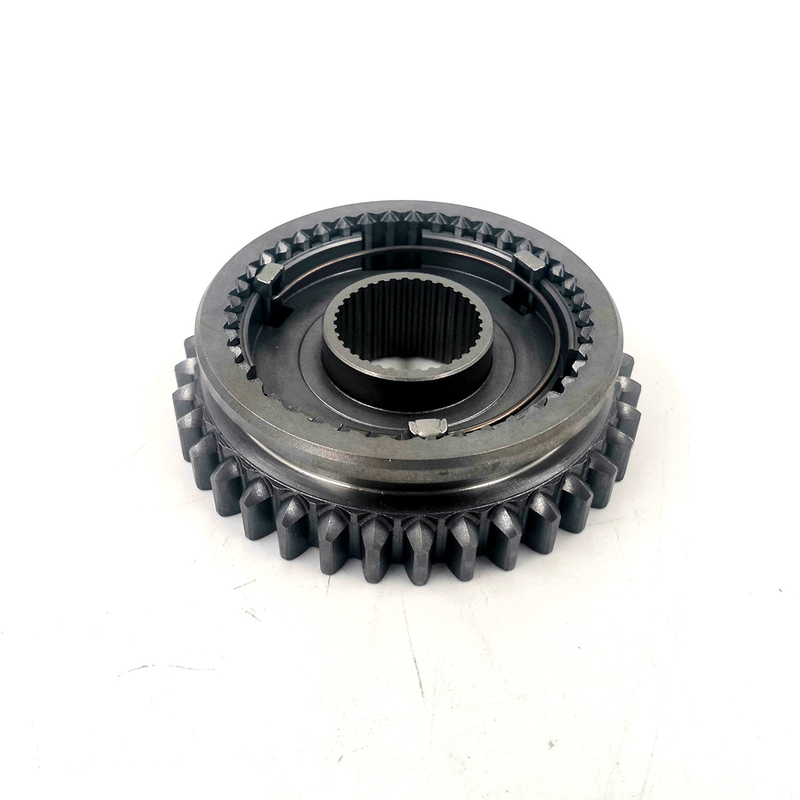

Metallic Color First And Second Gear Synchronizer Used for Car Gearbox
Quick Detail:
Brand Name: Mub
Product Name: First and second gear synchronizer
OE Number: L020 311 239
Quality:100% Tested
Size: standard
Car Fitment: VW Jetta Santana Polo
Application: transmission
Warranty:3 Months
Type: Transmission Assembly
Description:
Automobile synchronizer is to make the vehicle run more smoothly, so that the engagement sleeve and the gear ring to be engaged in rapid synchronization, in order to shorten the time of shift, reduce the noise of shift gear.
Specifications:
| Brand Name |
Mub |
| Product Name: |
First and second gear synchronizer |
| OE Number |
L020 311 239 |
| Type |
Transmission Assembly |
| Weight |
About 2kg |
| Material |
metal |
| Color |
metallic |
| Quality |
100% Tested |
| Application |
transmission |
| Size |
standard |
| Car Fitment |
VW Jetta Santana Polo |
| Packing |
According to the customer’s requirements |
| Warranty |
3 months |
| Place of Origin |
Hebei,China |
| Condition |
100% Brand-new |
| Payment |
Paypal; Wester Union; TT;L/C |
Notices:
- Open the packaging, check the products carefully, and take them gently.
- Install 1st gear with cone end facing up (front of transmission).
- Align the synchronous ring slider with the slider slot.

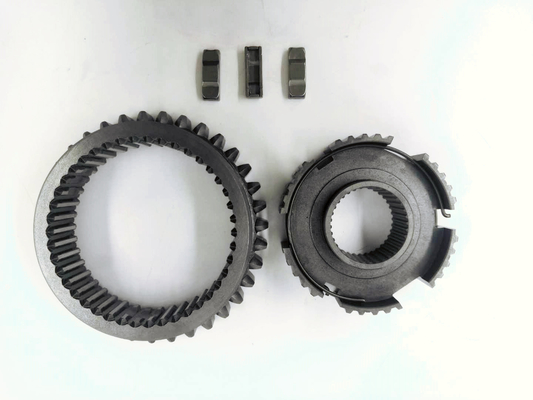

- Attach the engagement set to the spline hub, slide into the spline hub slot, then install the slide spring
- Install the sliding block spring so that the distance A and B between the sliding block and the open end of the spring is approximately equal, and the opening cannot be in the same direction at both ends
- The wide end of the outer surface of the coupling sleeve should face the 1st gear, and align the synchronous ring slider with the slider groove
- Hit the spline hub body face with a rubber hammer and press it into direct contact with the end face of the two-axis step
- Install the inner clasp, then measure the gap between the inner clasp and the spline hub. If the gap exceeds the standard value, select the thickest clasp installation that can be assembled from the table below
- Align the slider on the synchronization ring with the slider slot
FAQ
Q1. Can I have a sample order for synchronizer?
A:Yes, we welcome sample order to test and check quality
Q2. How to proceed an order for Timing Chain?
A2. Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly we arrange the production
Q3. WHEN WILL MAKE DELIVERY?
A3.:Delivery Time Sample Order:1-3 days after receipt of the full payment.
Stock Order:3-7days after receipt of the full payment.
Q4. After-sales service?
A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.
Q5: Will you provide a warranty?
A5: Yes, we are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But due to long time shipment there will be a little damage for products. Any quality issue, we will deal with it immediately.
Q6:How we can guarantee quality?
A6:Always a pre-production sample before mass production; Always final inspection before shipment.
