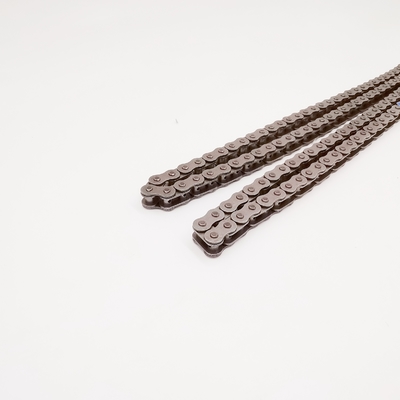

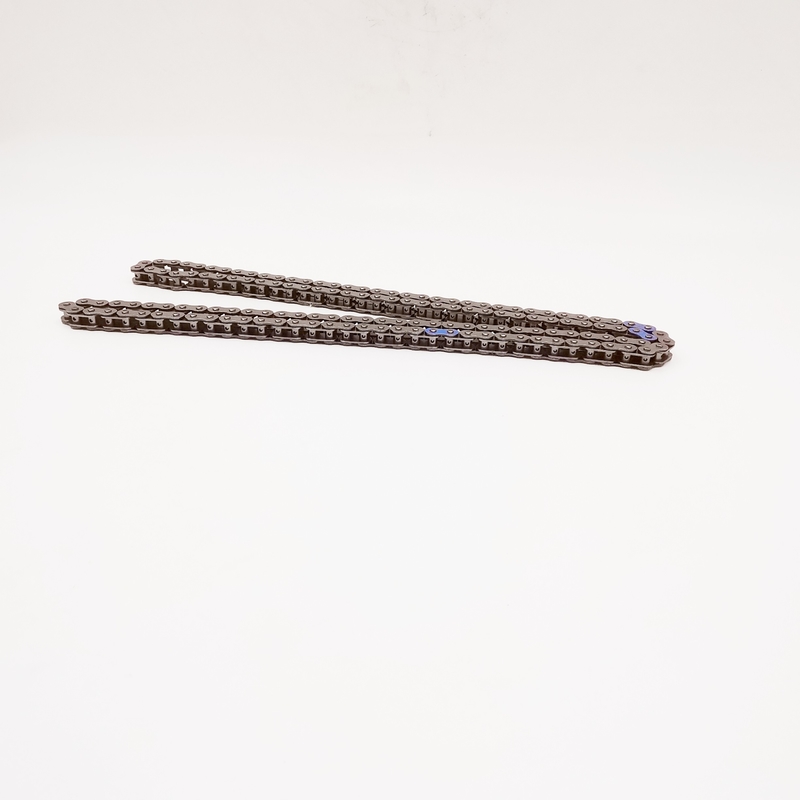

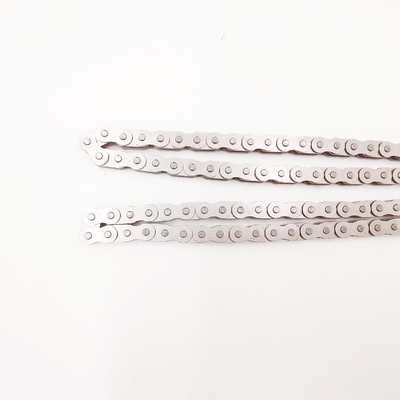

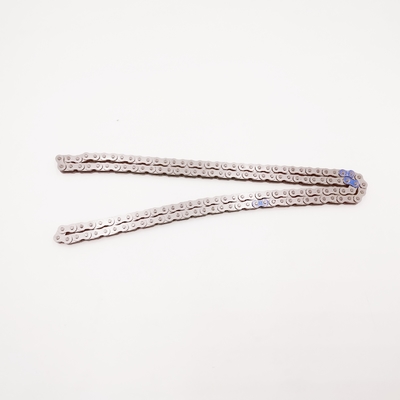

24321-25000 Car Engine Timing Chain For Hyundai G4NkE KIA

Genuine CHAIN-TIMING for Select Hyundai KIA Models OEM Part Number : 24321-25000

Description of CHAIN-TIMING for KIA Models :

The timing chain connects the timing wheel and the crankshaft of the engine cylinder head, and ensures the accuracy of the intake and exhaust time with a certain transmission ratio. To understand the use of timing chain, the first need to understand the starting process. The working process of engine mainly includes intake, compression, work and exhaust four steps. Although seemingly simple, the engine is in fact extremely complex, with the timing of each step matching the state and position of the piston and valve movement to coordinate the intake, exhaust and piston lift. The timing chain acts as a "bridge" in the engine, transferring kinetic energy to the corresponding parts driven by the crankshaft and keeping the piston, valve and other parts in the correct position at all times in different steps, so as to make the engine work normally.

Quick Detail of CHAIN-TIMING for KIA Models :

Brand Name: Mub

Product Name: CHAIN-TIMING for Hyundai KIA Models

OE Number: 24321-25000

Quality: High Quality

Size: standard

Car Fitment: Hyundai KIA

Application: Hyundai G4NkE Engine

Warranty:3 Months

Type: Hyundai KIA Engine chains

Key Word: CHAIN-TIMING for KIA Models

Specifications of CHAIN-TIMING for KIA Models :

Notices:

1.Open the packaging, check the products carefully, and take the gently.

2.Remove the negative electrode of the battery.

3.Remove the front hood of the engine and the parts that hinder operation.

4.Turn the bend so that the 1st cylinder piston is in the position of compression top dead center and align the timing marks on the camshaft and crankshaft sprocket. There are two timing marks on the camshaft sprocket, one is the first cylinder piston in the top dead center timing mark, then the first cylinder inlet valve and exhaust valve are closed; Second, the fourth cylinder piston is in the top dead center when the timing mark, then the fourth cylinder intake valve and exhaust valve are in the closed position. Make sure you know which cylinder is at top dead center of compression.

5. Remove the bolts on the camshaft sprocket, and remove the timing chain and camshaft sprocket.

6. If the crankshaft sprocket needs to be replaced, remove the sprocket with the puller. When installing the new sprocket, the chain and chain slot should be aligned to prevent loosening.

7. Install the timing chain on the camshaft sprocket, fix the sprocket, make the chain suspended, align the timing mark on the camshaft and crankshaft sprocket. Align the locating pin holes on the sprocket with the locating pin holes on the camshaft, and then install the sprocket on the camshaft. Camshaft sprocket bolt tightening torque is 20N·m.

8. Use oil to lubricate the timing sprocket and chain.

9. Turn the crankshaft twice to check whether the engine timing mark is aligned. If the timing markers are not aligned, repeat the preceding steps.

FAQ

Q1. Can I have a sample order for synchronizer?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for synchronizer?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-3 days after receipt of the full payment.

Stock Order:3-7days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
