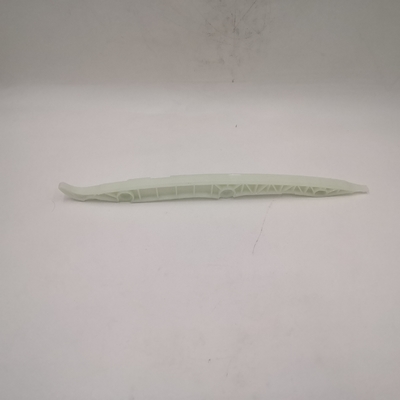

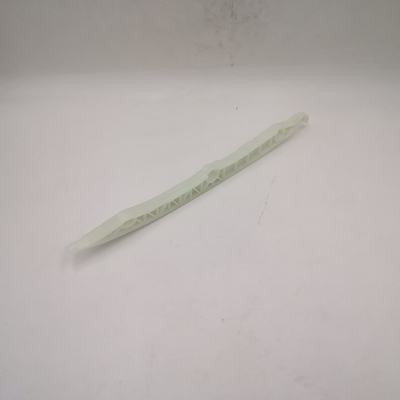

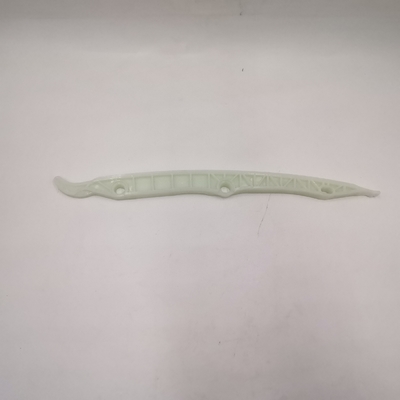

06K109469D Sliding Timing Chain Guard For Skoda VW 2010-2022 Audi 2005-2020

Timing Chain Guard (sliding Guide) OE Reference:06K 109 469 D Apply for VW (2010-2022) Audi (2005-2020)

Description of Timing Chain Guard :


The timing chain guide rail is a kind of transmission guide rail for your machinery. It has the advantages of durability, corrosion resistance and high strength, which can greatly reduce the hard friction between the conveyor belt and the frame, and effectively extend the service life of the conveyor belt.A timing chain guard of plastic material that supports, holds, guides, and reduces friction on a moving device or device.

Quick Detail of Timing Chain Guard:

Brand Name: Mub

Product Name:Timing Chain Guard (sliding Guide)

Key Word:Timing Chain Guard

OE Number:06K 109 469 D

Size: 39.5*3*2 cm

Car Fitment: VW Lamado Passat Touran Tiguan Golf CC Sagitar Magotan SKODA Audi A3 A4L A6L Q5

Warranty:3 Months

Type: EA888 Timing Chain Guide

Key Word: Timing Chain Guide

Weight:0.8KG

Characteristic:To eliminate the vibration of the chain

Application: Audi VW Skoda Timing Chain Guard

Specifications of Timing Chain Guard:

Notices:

1.Before assembly, all parts, assemblies, lubricating oil routes, tools and worktables should be thoroughly cleaned and dried with compressed air.

2, before assembly, check all bolts and nuts, do not meet the requirements should be replaced; Cylinder gasket, gasket, cotter pin, lock piece, locking wire, gasket, etc. should be replaced during overhaul.

3, non-interchangeable parts, such as cylinder piston connecting rod group, bearing cover, valve, etc., should be assembled according to the corresponding position and direction, shall not be installed wrong.

4, the matching parts should meet the technical requirements, such as cylinder piston clearance, shaft tile journal clearance, crankshaft axial clearance, valve clearance, etc.

5, the timing relationship between the relevant components is correct, work coordination, such as valve phase, oil supply advance Angle, ignition time, etc.

6, important bolts and nuts on the engine, such as cylinder head nuts, connecting rod bolts, flywheel bolts, etc., must be tightened in turn according to the specified torque, if necessary, should also be locked.

7, each relative movement of the matching surface, assembly should be coated with clean lubricating oil.

8, ensure the tightness of the sealing parts, no oil leakage, water leakage, gas leakage phenomenon.

9. Use special equipment to assemble as far as possible, and tighten bolts according to the prescribed tightening torque, fastening method and sequence.

10, the assembly clearance must meet the technical conditions, but should be adjusted according to the specific situation.

FAQ

Q1. Can I have a sample order for Timing Chain Guide Rail ?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for Timing Chain Guide Rail?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-3 days after receipt of the full payment.

Stock Order:3-7days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
