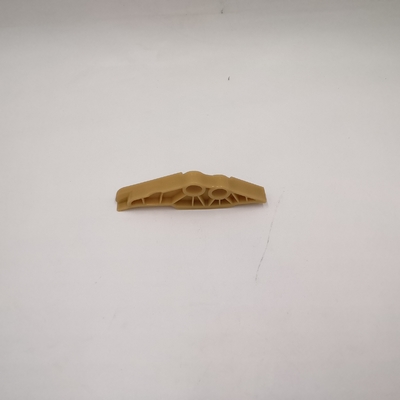

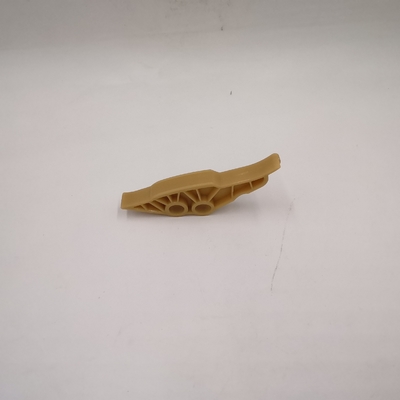

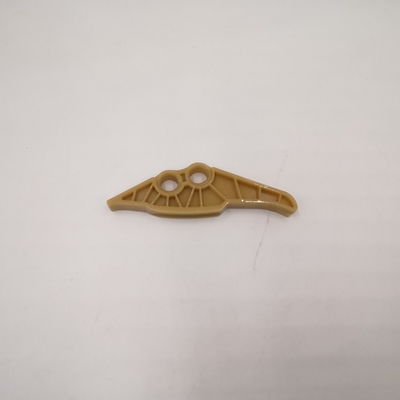

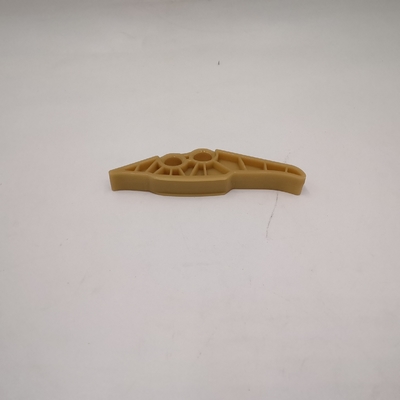

EA888 Timing Chain Guide Rail And Tensioner For German Automobile Engine ODM

Timing Chain And Guides For German Automobile Engine-VW AUDI Accessories

Description of Timing Chain And Guides :

The function of the guide rail of the timing chain is to provide fixed and guiding function for the movement track of the timing chain, so as to make the engine run normally. Engine timing is an important guarantee for engine ignition time and operation. Ignition advance Angle refers to the Angle the crankshaft turns during a period of time from spark plug electrode jump-off to piston operation at the top stop point.

Quick Detail of Timing Chain And Guides :

Brand Name: Mub

Product Name:German car timing chain and guides

OE Number: 06K 109 469 K

Size: 13*3.8*1.5cm

Car Fitment: VW Lamado Viloran Passat Touran Tiguan Golf CC Magotan SKODA Audi A3 A4L A6L Q3 Q5L Q5

Warranty:3 Months

Type: VW Audi Timing Accessories

Key Word: timing chain and guides

Weight:0.3KG

Characteristic:Long service time

Application:EA888 German Automobile

Specifications of Timing Chain And Guides :

Notices:

1.Before assembly, all parts, assemblies, lubricating oil routes, tools and worktables should be thoroughly cleaned and dried with compressed air.

2, before assembly, check all bolts and nuts, do not meet the requirements should be replaced; Cylinder gasket, gasket, cotter pin, lock piece, locking wire, gasket, etc. should be replaced during overhaul.

3, non-interchangeable parts, such as cylinder piston connecting rod group, bearing cover, valve, etc., should be assembled according to the corresponding position and direction, shall not be installed wrong.

4, the matching parts should meet the technical requirements, such as cylinder piston clearance, shaft tile journal clearance, crankshaft axial clearance, valve clearance, etc.

5, the timing relationship between the relevant components is correct, work coordination, such as valve phase, oil supply advance Angle, ignition time, etc.

6, important bolts and nuts on the engine, such as cylinder head nuts, connecting rod bolts, flywheel bolts, etc., must be tightened in turn according to the specified torque, if necessary, should also be locked.

7, each relative movement of the matching surface, assembly should be coated with clean lubricating oil.

8, ensure the tightness of the sealing parts, no oil leakage, water leakage, gas leakage phenomenon.

9. Use special equipment to assemble as far as possible, and tighten bolts according to the prescribed tightening torque, fastening method and sequence.

10, the assembly clearance must meet the technical conditions, but should be adjusted according to the specific situation.

FAQ

Q1. Can I have a sample order for Timing Chain Guide Rail ?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for Timing Chain Guide Rail?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-3 days after receipt of the full payment.

Stock Order:3-7days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
