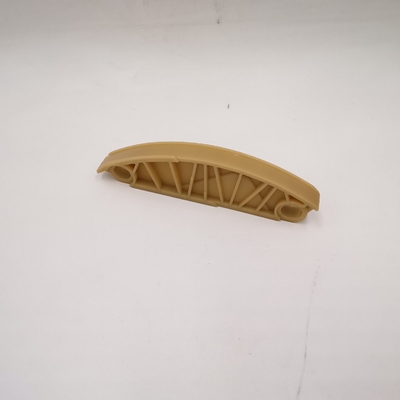

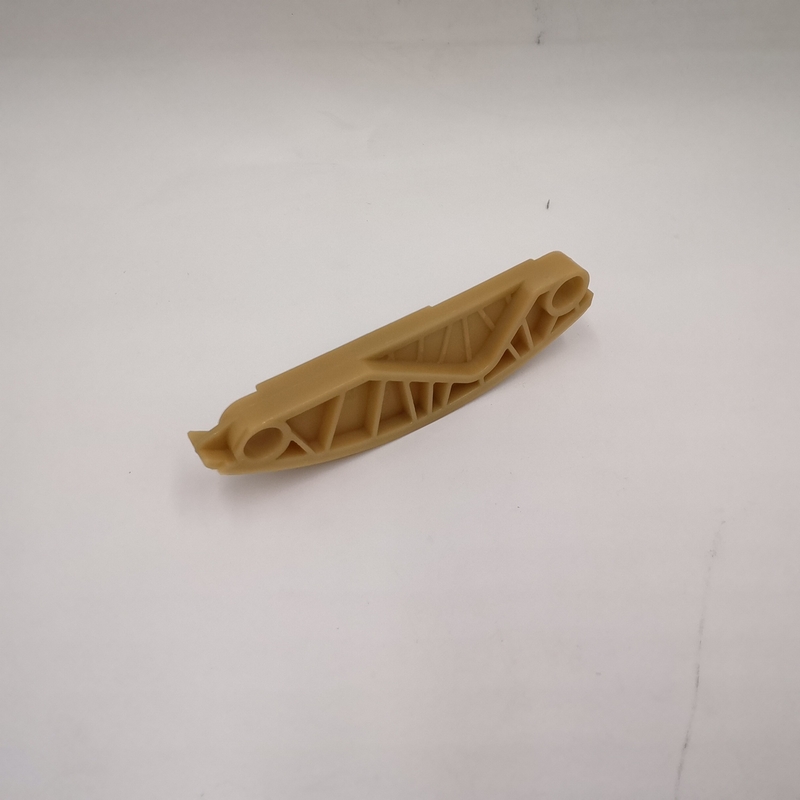

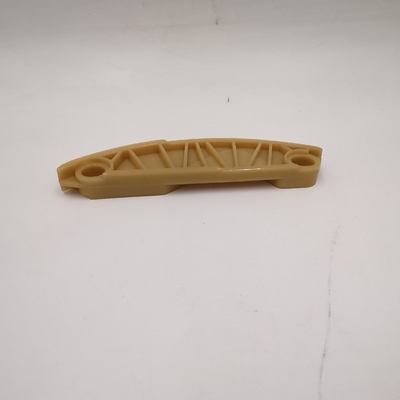

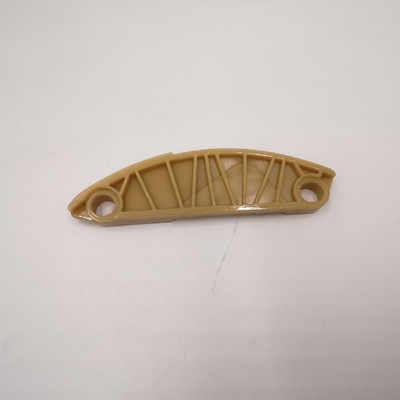

Audi VW Camshaft Timing Chain Rail Tensioner Guide for Engine 06K109469L

Audi VW Camshaft Timing Chain Tensioner Guide-Engine System Key Component

Quick Detail of Timing Chain Tensioner Guide :

Brand Name: Mub

Product Name:Audi VW Camshaft Timing Chain Tensioner Guide

OE Number: 06K109469L

Size: 14.8*4*2cm

Car Fitment: VW Lamado Viloran Passat Touran Tiguan Golf CC Magotan SKODA Audi A3 A4L A6L Q3 Q5L Q5

Warranty:3 Months

Type: Audi VW Key Component

Key Word: Timing Chain Tensioner Guide

Weight:0.5KG

Theory:sliding friction

Application:Engine Timing System

Description of Timing Chain Tensioner Guide :

The timing guide is plastic to reduce noise. The plastic is elastic and can absorb shock, reducing the noise generated during transmission. Plastic guide rails have excellent self lubricating wear resistance. The friction coefficient of metal is small, so it can reduce the driving force of sliding parts and improve transmission efficiency. Silence The dynamic friction coefficient is close to each other (small change), so that the sliding is smooth; It can achieve very low moving speed without crawling and improve the positioning accuracy of moving parts. Due to good self-lubrication, the lubrication device can be simplified, and when the lubricating oil is occasionally interrupted for a short time, it will not lead to guideway grinding. Compared with other guideways, it has the advantages of simple structure, low operating cost, good shock resistance, low working noise and high bearing capacity.

Specifications of Timing Chain Tensioner Guide :

Notices:

1.Before assembly, all parts, assemblies, lubricating oil routes, tools and worktables should be thoroughly cleaned and dried with compressed air.

2, before assembly, check all bolts and nuts, do not meet the requirements should be replaced; Cylinder gasket, gasket, cotter pin, lock piece, locking wire, gasket, etc. should be replaced during overhaul.

3, non-interchangeable parts, such as cylinder piston connecting rod group, bearing cover, valve, etc., should be assembled according to the corresponding position and direction, shall not be installed wrong.

4, the matching parts should meet the technical requirements, such as cylinder piston clearance, shaft tile journal clearance, crankshaft axial clearance, valve clearance, etc.

5, the timing relationship between the relevant components is correct, work coordination, such as valve phase, oil supply advance Angle, ignition time, etc.

6, important bolts and nuts on the engine, such as cylinder head nuts, connecting rod bolts, flywheel bolts, etc., must be tightened in turn according to the specified torque, if necessary, should also be locked.

7, each relative movement of the matching surface, assembly should be coated with clean lubricating oil.

8, ensure the tightness of the sealing parts, no oil leakage, water leakage, gas leakage phenomenon.

9. Use special equipment to assemble as far as possible, and tighten bolts according to the prescribed tightening torque, fastening method and sequence.

10, the assembly clearance must meet the technical conditions, but should be adjusted according to the specific situation.

FAQ

Q1. Can I have a sample order for Timing Chain Guide Rail ?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for Timing Chain Guide Rail?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-3 days after receipt of the full payment.

Stock Order:3-7days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
