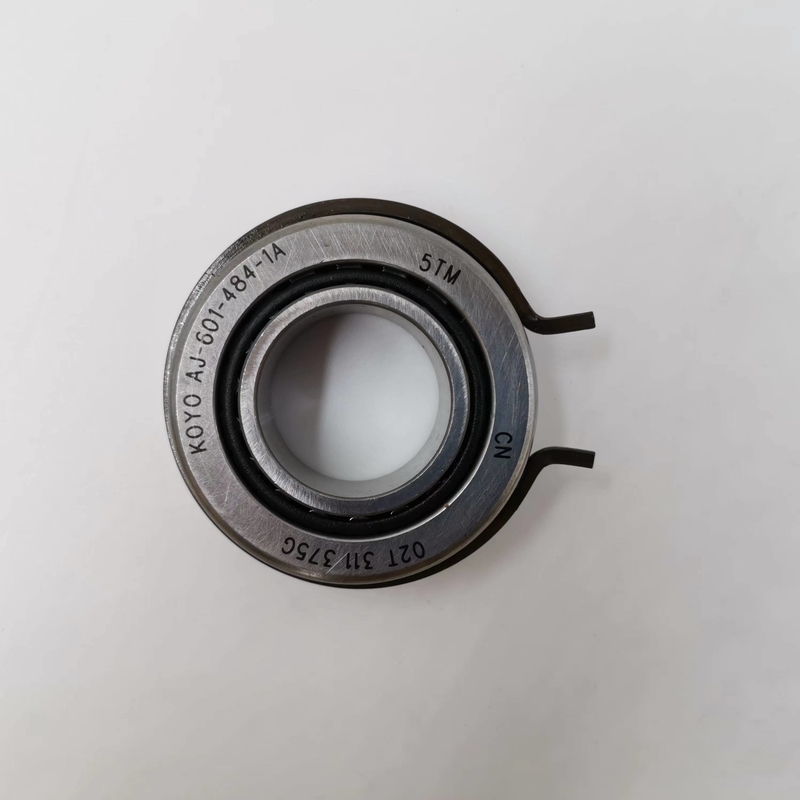

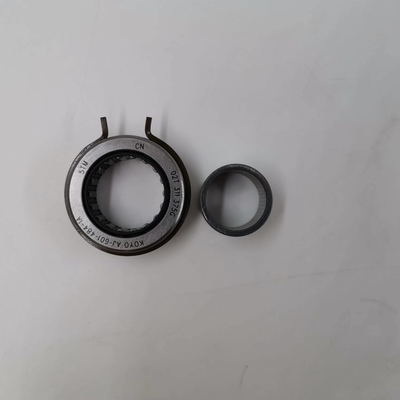

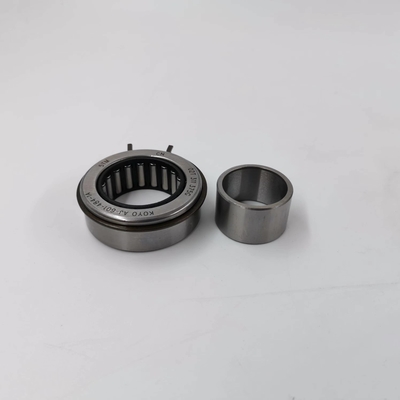

Differential bearing manual transmission gearbox bearings single shaft bearing

Quick Detail of single shaft bearing:

Brand Name: Mub

Product Name: gearbox bearings single shaft bearing

Warranty:3 Months

Type: Gearbox Bearing

Key Word: single shaft bearing

Weight:1kg

Advantage: Support the mechanical rotating body

Function: Ensure the rotation accuracy of gearbox

Car Model: VW Santana Jetta Sagitar T-ROC

Material:steel

Description of single shaft bearing :

The shaft bearing of the transmission is to support the mechanical rotation body, reduce the friction coefficient during its movement, and ensure the rotation accuracy of the transmission. The role of the first shaft of the transmission is to ensure that the first shaft and the second journal of the transmission remain on the same center line, and that the first shaft and the second shaft can rotate independently, while also maximizing the dispersion and reducing the wear of the two friction surfaces.

Specifications of single shaft bearing :

Notices:

1. Install the anti slip wheel stopper

2. Remove the transmission shaft, gearbox support bolts, and pull rods to support the engine 3. Remove the gearbox connecting bolts, remove the gearbox assembly, and drain the waste oil

4. Remove the clutch bearing, fork, and fork shaft

5. Remove the end cover of the first shaft, take out the first shaft assembly

6. Open the safety plate, unscrew the nut, and remove the bearing from the first shaft

7. Check the fit clearance between the bearing and the bearing. If the detection exceeds the limit, it should be repaired.

8. Heat the new bearing and quickly install it onto the first shaft, install the nut, and lock the fuse.

9. Install the first shaft assembly into the gearbox housing, assemble the front cover, and tighten the bolts.Drive the first bearing in the neutral position, and it should rotate flexibly without jamming.

10. Check and assemble the clutch bearing, shift fork, and shift fork shaft, and add the specified lubricating oil.

11. Assemble the gearbox assembly, transmission shaft, connecting rod, and fastening bolts.

FAQ

Q1. Can I have a sample order for car gearbox bearing?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for car gearbox bearing?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-7days after receipt of the full payment.

Stock Order:10-15days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
