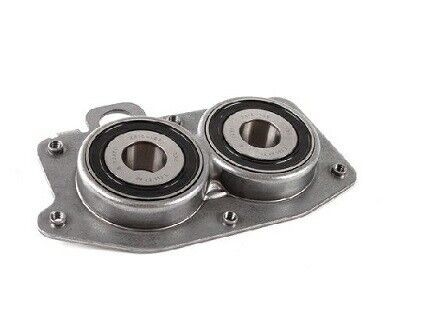

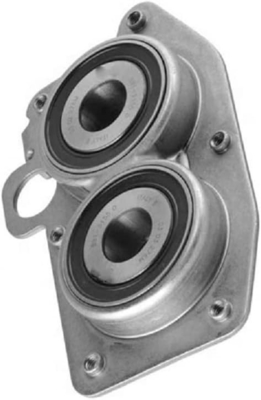

VW Polo Skoda 5-Speed Manual Gearbox Transmission Bearing 100% Tested

Description:

The function of transmission bearings reduces the friction coefficient of transmission shaft in the process of movement, and ensures the accuracy of transmission rotation. At the same time, transmission bearings change the speed of the car according to the needs of changes in road conditions and driving conditions, and provide suitable driving force, transmission bearings cut off or transmit engine power as needed. So that the engine can effectively output power or idle, through shifting, change the direction of the car power output, to achieve forward driving and reverse driving.

Specifications :

Product use and precaution:

The function of the transmission bearing is to support the transmission parts and provide accurate guidance for the work of the transmission. It bears both axial and radial loads, and is a very important part.

1. Check the condition of bearing rolling elements, inner and outer raceways. The rolling element and the inner and outer ring raceway should not have cracks, spots, dents, scaly metal shedding, burns and discoloration, otherwise the bearing should be replaced.
2. Check the rotation of bearings. Turn the bearing with your finger. The bearing rotation should be smooth, the running noise is uniform, there is no gap, no hair clip, no swing and noise, otherwise the bearing should be replaced.
3. Check the radial and axial clearance of the bearing. When testing, use a rack-mounted dial gauge to measure on a flat or flat seat. When checking the radial clearance of the bearing, hold the inner ring with one hand and move the outer ring horizontally with the other hand, the movement of the dial indicator is the radial clearance of the bearing; To check the axial clearance of the bearing, press the outer ring with your hand while pushing up the inner ring with your finger. The movement of the dial gauge is the axial clearance of the bearing. Radial clearance is not greater than 0.30mm, axial clearance is not greater than 0.50mm, otherwise the rolling bearing should be replaced.
4. Measure the inner diameter and outer diameter of the inner ring of the rolling bearing with a measuring tool, and the corresponding size of the journal and bearing seat hole. The matching of the rolling bearing with the journal and bearing seat hole should meet the limit standard, otherwise the bearing should be replaced or the journal and bearing seat hole should be repaired.

FAQ

Q1. Can I have a sample order for car gearbox bearing?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for car gearbox bearing?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-7days after receipt of the full payment.

Stock Order:10-15days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
