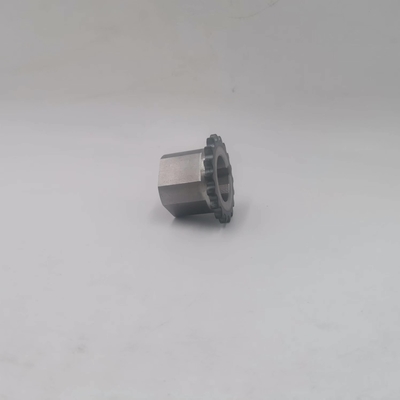

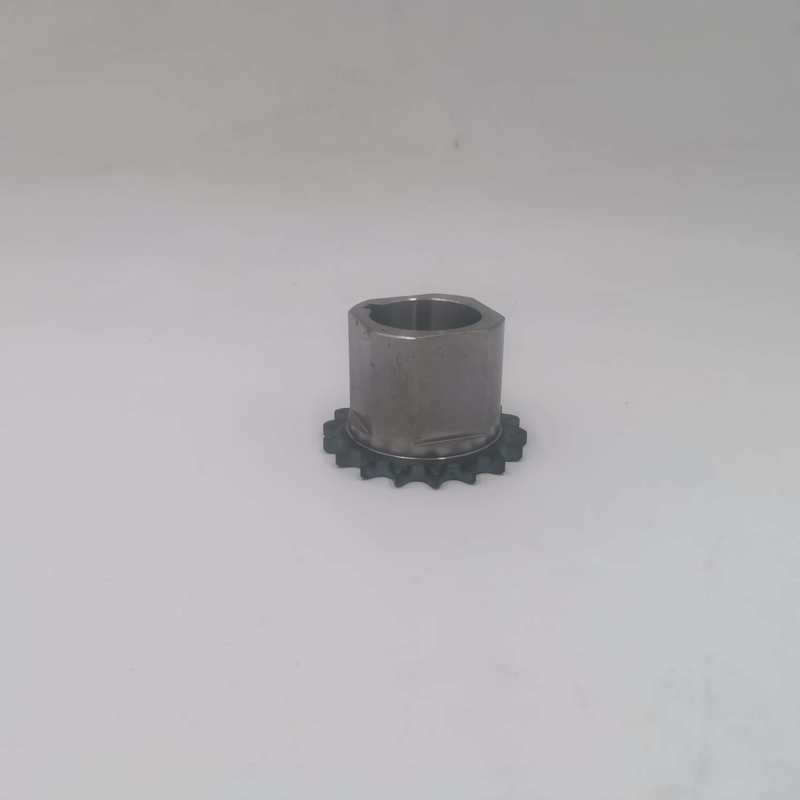

Mub 1~100Kg Customized Powder Metallurgy Parts for Motors Automotive

Mub 1~100Kg Customized Powder Metallurgy Parts for Motors Automotive

Description :

Automobile powder metallurgy parts refer to the parts manufactured by powder metallurgy process for automobiles. These parts are usually made from a mixture of metal powder and additives, and are formed into the desired shape and properties by pressing, sintering, and other processes.

The advantages of automotive powder metallurgy parts include high density, high strength, high wear resistance, high corrosion resistance, low friction coefficient, and high dimensional accuracy. These advantages make powder metallurgy parts widely used in automobile manufacturing, such as engine, transmission system, chassis, steering system, braking system and so on.

Common automotive powder metallurgy parts include gear, crankshaft, connecting rod, camshaft, piston, brake disc, clutch parts, transmission parts, etc. These parts are usually made of iron, copper, aluminum and other metal powder, the specific material and process parameters depend on the specific requirements of the part and the use of the occasion.

Specifications :

The production process of automotive powder metallurgy parts :

Material preparation: The material of powder metallurgy parts is usually composed of metal powder and additives. Metal powder needs to go through screening, mixing, drying and other process steps to ensure the uniformity and quality stability of the powder.

Press molding: The mixed metal powder is put into the mold and pressed under high pressure to form the desired shape. Pressing is usually done by isostatic pressing or injection molding.

Sintering treatment: The parts after pressing are placed at high temperature for sintering treatment, so that the fusion and diffusion between the powder particles occur, forming a dense metal structure. The sintering temperature and time depend on the type of metal material and the specific requirements of the part.

Follow-up processing: The parts after sintering treatment need to undergo some follow-up processing, such as grinding, turning, drilling, milling, etc., in order to obtain the required dimensional accuracy and surface quality.

Surface treatment: Some powder metallurgy parts need surface treatment, such as coating, spraying, etc., to improve their corrosion resistance and surface hardness.

The above is the general production process of automotive powder metallurgy parts. Different parts and different applications may have different specific process parameters and processes.

FAQ

Q1. Can I have a sample order for Powder Metallurgy?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for Powder Metallurgy?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-7days after receipt of the full payment.

Stock Order:10-15days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
