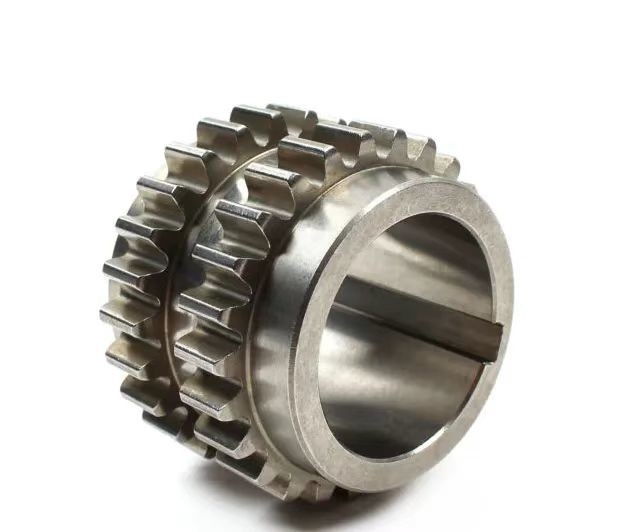

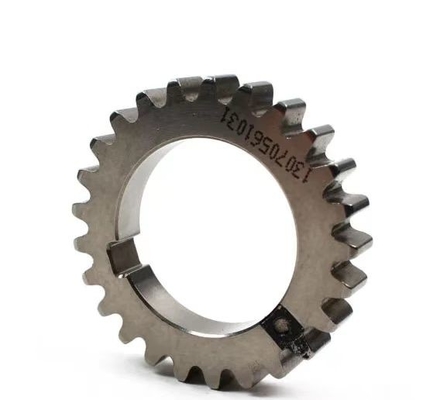

OEM 23121-3c100 Crankshaft Timing Sprocket High Strength and Durability

Product Basic Information:

Crankshaft Timing Sprocket Crankshaft timing Sprocket is a key component in the engine timing system. It is mounted on the crankshaft and is usually located at the front end of the crankshaft. The Sprocket is connected to the Camshaft Sprocket via a timing chain or timing belt to ensure accurate synchronization of the various components within the engine.

Crankshaft Timing Sprocket's main function is to convert the rotating motion of the crankshaft into the rotating motion of the camshaft. The cams on the camshaft are connected to the crankshaft sprocket by a timing chain or timing belt, and as the crankshaft rotates, the sprocket will transfer rotational force to the camshaft, causing the camshaft CAM to open and close the valve in a precise chronological order. This precise synchronization is essential to the proper operation of the engine, ensuring that the opening and closing of the valve is coordinated with the movement of the piston, thus achieving the correct entry and exit of fuel and air in the combustion chamber.

Specification:

Product Precautions:

Preparation: Before installation, make sure the engine is in a critical position (usually a specific position on the crankshaft, such as TDC) and is stopped. Disconnect the negative battery to avoid accidental startup.

Remove the old sprocket: If the old sprocket has been installed on the crankshaft, it needs to be removed. This involves removing the timing chain or timing belt and removing the old sprocket from the crankshaft.

Prepare the new Sprocket: Make sure the new Crankshaft Timing Sprocket matches the requirements of the engine model and timing system. Check the gears and orifice on the sprocket to make sure they match the camshaft sprocket and the timing chain or timing belt.

Install the new sprocket: Place the new sprocket in the correct position on the crankshaft and make sure it is aligned with the gears or keyways of the crankshaft. Depending on the engine manufacturer's instructions, it may be necessary to use specific spacers or dowel pins between the sprocket and the crankshaft.

Install timing chain or belt: Install timing chain or belt between crankshaft sprocket and camshaft sprocket according to engine manufacturer's instructions. Make sure the chain or belt is properly taut and adjusted and calibrated according to the manufacturer's recommendations.

Verify timing: After installation, ensure that the tensioner or regulator of the timing chain or timing belt is in the correct position. Then, manually turn the crankshaft several times to check the smooth operation of the sprocket and chain or belt, and to ensure that the opening and closing time of the valve is synchronized with the rotation of the crankshaft.

Complete installation: After confirming that the timing sprocket and timing system are installed correctly, reconnect the negative battery terminal and carry out the necessary system inspection and testing. Ensure that the engine timing system is working properly and make necessary adjustments and calibration.

FAQ

Q1. Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for this product?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-7days after receipt of the full payment.

Stock Order:10-15days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty. If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery.
