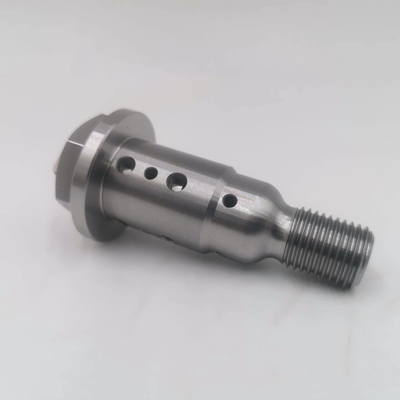

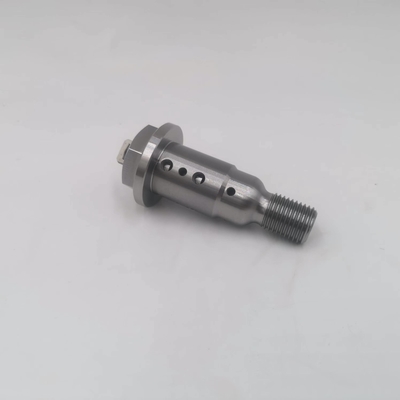

Engine Parts Camshaft Position Actuator Solenoid Valve 12633123 For GMC 2014-2018

Product Basic Information:

The Camshaft Position Solenoid Valve is a key component in the engine control system. It is commonly used in variable camshaft systems, which adjust the phase of the camshaft to change the opening and closing timing of the valve, resulting in better performance and fuel economy.

Camshaft position regulator The main function of the solenoid valve is to control the operation of the camshaft position regulator. The valve uses electromagnetic force to control the flow of hydraulic fluid, which in turn controls the phase of the camshaft. It usually consists of a coil and a valve body, and the coil generates an electromagnetic force by controlling the voltage, moving the valve body to a different position, thus changing the channel of the hydraulic fluid.

When the engine control module (ECM) receives the camshaft position information from the sensor, it can adjust the camshaft phase by controlling the camshaft position regulator solenoid valve. By changing the phase of the camshaft, the opening and closing time of the valve can be adjusted to achieve better combustion efficiency and power output.

Failure of the camshaft position regulator solenoid valve can result in reduced engine performance, reduced fuel economy, or cause other engine problems. Common fault codes may include codes between P0010 and P0020 that relate to the operation of the camshaft position regulator solenoid valve. If these fault codes occur, it is usually necessary to check that the solenoid valve's coil and body are working properly and ensure that the hydraulic fluid channels are not blocked or leaking.

In short, the camshaft position regulator solenoid valve is an important component in the engine control system, which changes the opening and closing time of the valve by controlling the phase of the camshaft to achieve better performance and fuel economy.

Specifications:

The production process of the product:

Parts manufacturing: First, according to the design requirements, manufacture the camshaft position regulator solenoid valve parts. These parts may include valve bodies, coils, pistons, springs, etc. The manufacturing process may involve material processing, molding, casting, stamping, machining and other processes.

Parts processing and assembly: In this step, parts are processed and assembled. This may include valve body machining, coil winding, piston assembly, etc. The process of processing and assembly requires strict quality control to ensure that the accuracy and function of the parts meet the requirements.

Solenoid valve assembly: Assemble the parts into a complete camshaft position regulator solenoid valve. This may involve installing the coil to the valve body, installing the piston and spring into place, ensuring a seal between the valve body and piston, etc. The assembly process requires attention to detail and precision to ensure the proper operation of the solenoid valve.

Testing and quality control: In the production process, solenoid valve testing and quality control. This may include testing the function of the solenoid valve, such as checking the resistance and working status of the coil, testing the sealing performance of the valve body, etc. Through testing and quality control, to ensure that the production of solenoid valves meet the specifications and requirements.

Packaging and delivery: Finally, the manufactured camshaft position regulator solenoid valve is packaged and ready for delivery. The packaging process usually includes appropriate protective measures to prevent the solenoid valve from being damaged during transportation and storage.

FAQ

Q1. Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for this product?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-7days after receipt of the full payment.

Stock Order:10-15days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty. If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit; We respect every customer as our friend and we sincerely do business and make friends with them, No matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery.
