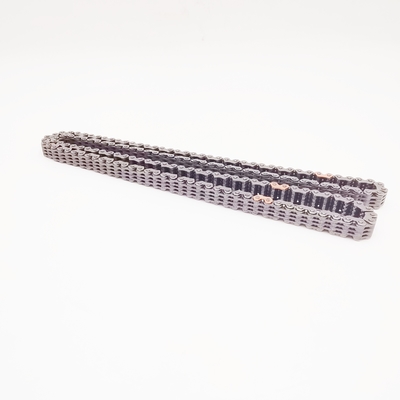

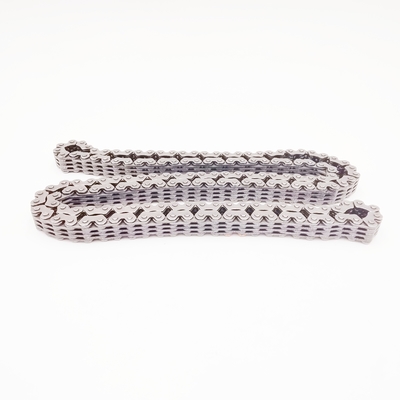

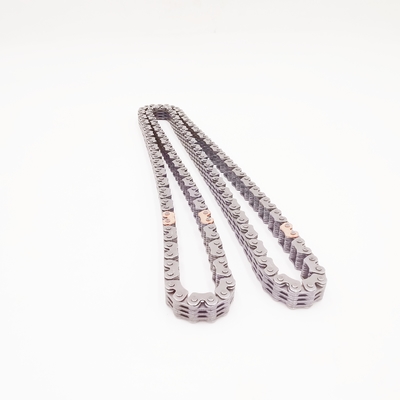

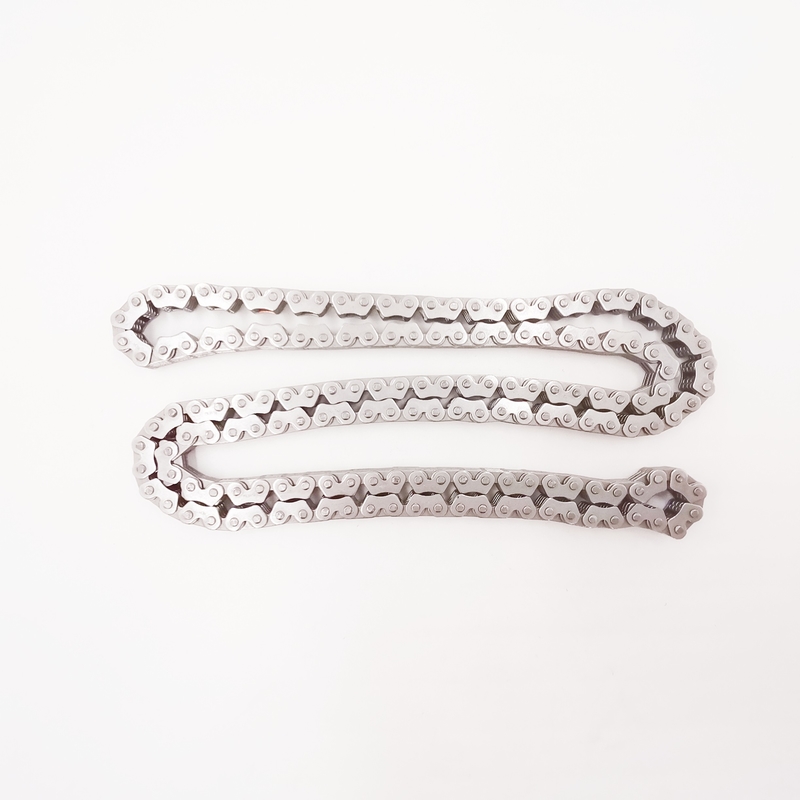

Hyundai G4FC Engine Chain Automotive Engine Repair Parts 24231-2B000

Hyundai G4FC Engine Chain 24231-2B000 -Automotive Engine System Components Repair Parts

Quick Detail of G4FC Engine Chain:

Brand Name: Mub

Product Name: Hyundai G4FC Engine Chain

OE Number: 24231-2B000

Quality: High Quality

Size: standard

Car Fitment: i30,Verna,FS,K2,K3,K3S,KX3,Soul,Fcrte

Application: Hyundai Engine

Warranty:3 Months

Type: G4FC Engine Chain

Key Word: G4FC Engine Chain

Description of G4FC Engine Chain:

The role of the timing chain is to promote the engine to a certain extent, ensure the normal operation of the engine, can effectively reduce the fuel consumption, increase the power for the car, contribute to the stability of the car. In addition, the timing chain can also drive the valve mechanism inside the engine, in order to better open or close the exhaust valve, conducive to the driving of the car, conducive to the engine to provide kinetic energy.

Specifications of G4FC Engine Chain:

Notices:

1.Open the packaging, check the products carefully, and take them gently.

2. First, align the timing mark on the camshaft sprocket with the timing mark on the bearing cover and turn the crankshaft so that the piston of one cylinder is at top dead center; Install the timing chain so that the timing mark of the chain is aligned with the timing mark on the camshaft sprocket; Install the oil pump drive sprocket so that the timing marks of the chain line up with the timing marks on the oil pump sprocket.

3. Determine the three yellow links on the timing chain. Install the timing chain and crankshaft sprocket with the first yellow link aligned with the timing mark of the crankshaft sprocket. Note: There are three yellow links on the timing chain, two of which (6 links apart) are aligned with the timing marks on the intake and exhaust camshaft sprockets.

4. When the engine speed drops, the variable valve timing regulator drops, the upper chain is released, and the lower chain acts on the rotary tension of the exhaust CAM and the downward thrust of the regulator. Since the exhaust camshaft cannot reverse counterclockwise under the action of the crankshaft timing belt, the intake camshaft is subject to the joint action of two forces: one is the tension of the exhaust camshaft to drive the chain through normal rotation; The second is the tension that the regulator pushes the chain to pass to the exhaust CAM.

5. The intake camshaft turns an additional 6 angles clockwise, which accelerates the closing of the intake valve, that is, the delayed closing Angle of the intake valve is reduced. As the speed increases, the regulator rises and the lower chain loosens. The exhaust camshaft rotates clockwise. First, the lower chain should be tightened to make it a tight edge so that the intake camshaft can be rotated by the exhaust camshaft drive. In the process of turning the lower chain from loose to tight, the exhaust camshaft has turned 0°, the intake CAM starts to act, and the intake valve slowly closes.

FAQ

Q1. Can I have a sample order for synchronizer?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for synchronizer?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-3 days after receipt of the full payment.

Stock Order:3-7days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
