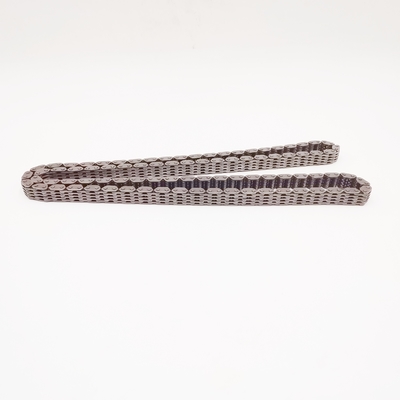

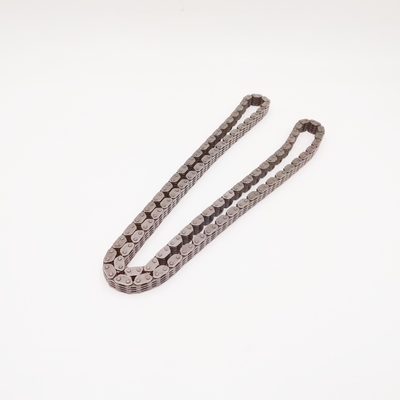

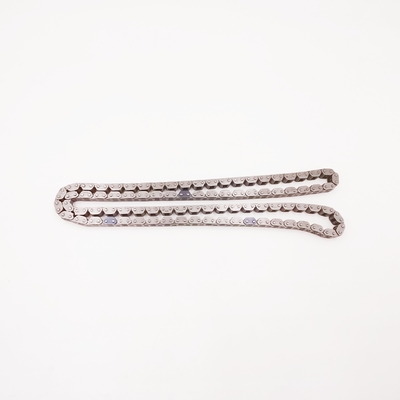

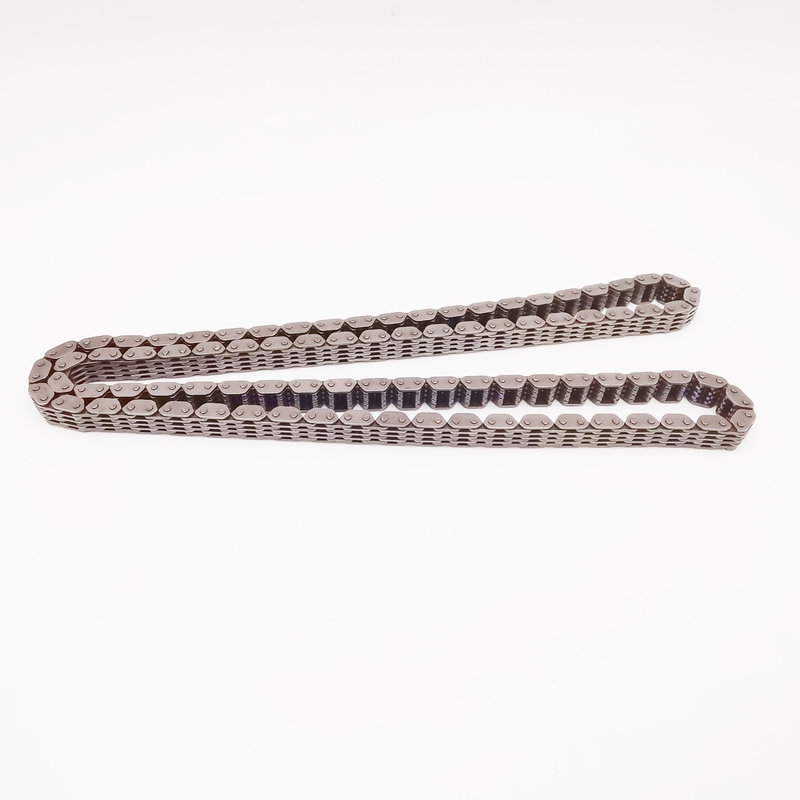

Petrol Vehicles Engine EA888 Timing Chain VW 1.8T & 2.0T 06K109158BL

Petrol Vehicles Engine EA888 1.8 & 2.0T Timing Chain Fit For VW Audi-Timing System

Quick Detail of EA888 Timing Chain:

Brand Name: Mub

Product Name: EA888 1.8 & 2.0T Timing Chain

OE Number: 06K109158BL

Quality: High Quality

Size: standard

Car Fitment: VW Viloran Phideon Teramont Tiguan CC Magotan Tayrgn A4L A6L Q5L Skoda

Application: VW EA888 Engine

Warranty:3 Months

Type: VW Chain

Key Word: EA888 Timing Chain

Description of EA888 Timing Chain:

The main role of the timing chain is to serve the engine's valve system and water pump. Whether the timing chain works normally or not determines the working condition of the engine and the cooling environment. If the work is not good, the power and output of the engine will be greatly reduced. The main role of EA888 engine timing chain is to drive the valve mechanism of the engine, so that the engine intake and exhaust valves open or close at the appropriate time, to ensure that the engine cylinder can normally inhale and exhaust.

Specifications of EA888 Timing Chain :

Notices:

1.Open the packaging, check the products carefully, and take them gently.

2.Remove the negative electrode cable of the battery.

3.Remove the front hood of the engine and the parts that hinder the operation.

4.Turn the bend so that the 1st cylinder piston is in the compressed top dead center position, and align the timing marks on the camshaft and crankshaft sprocket, as shown in Figure 1. There are two timing marks on the camshaft sprocket, one is the first cylinder piston in the top dead center timing mark, then the first cylinder inlet valve and exhaust valve are closed; Second, the fourth cylinder piston is in the top dead center when the timing mark, then the fourth cylinder intake valve and exhaust valve are in the closed position. Make sure you know which cylinder is at top dead center of compression.

5.Remove the bolts on the camshaft sprocket, and remove the timing chain and camshaft sprocket.

6.If the crankshaft sprocket needs to be replaced, use the puller to remove the sprocket. When installing the new sprocket, the chain and chain slot should be aligned to prevent loosening.

7.Install the timing chain on the camshaft sprocket, fix the sprocket, make the chain suspended, align the timing mark on the camshaft and crankshaft sprocket. Align the locating pin holes on the sprocket with the locating pin holes on the camshaft, and then install the sprocket on the camshaft. Camshaft sprocket bolt tightening torque is 20N·m.

8.Use oil to lubricate the timing sprocket and chain.

9.Turn the crankshaft twice to check whether the engine timing mark is aligned. If the timing markers are not aligned, repeat the preceding steps

FAQ

Q1. Can I have a sample order for synchronizer?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for synchronizer?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-3 days after receipt of the full payment.

Stock Order:3-7days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
