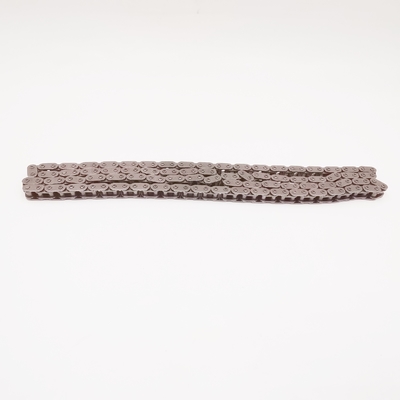

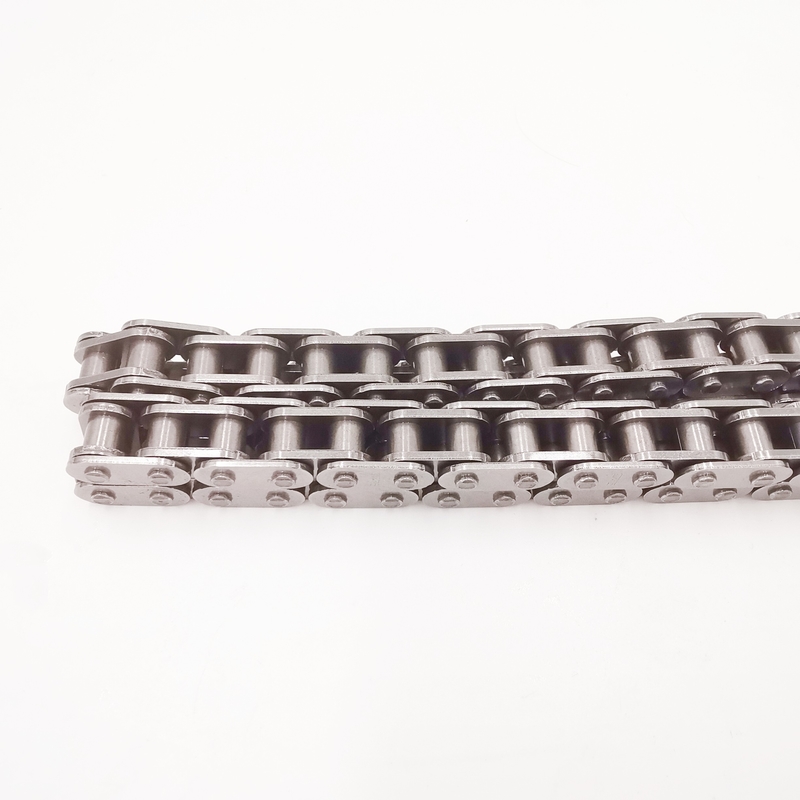

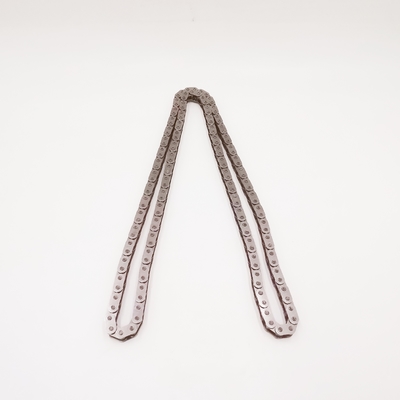

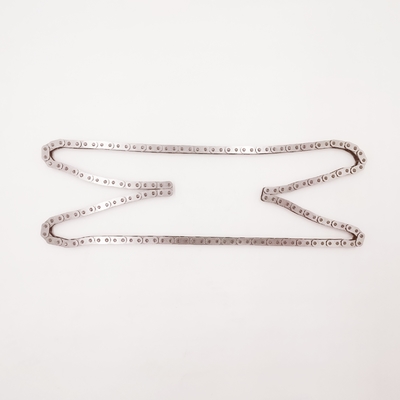

Maxus LDV G10 2.0T Engine Car Engine Timing Chain 10241841 OEM

OEM Maxus G10.2.0T Engine Car Timing System-Maxus Timing Chain 0E Number: 10241841

Quick Detail of Timing System-Maxus Timing Chain:

Brand Name: Mub

Product Name: Car Timing System-Maxus Timing Chain

OE Number: 10241841

Quality: 100% Tested

Size: standard

Car Fitment: Maxus G10

Application: Maxus Engine

Warranty:3 Months

Type: Maxus Chain

Key Word: Timing System-Maxus Timing Chain

Description of Timing System-Maxus Timing Chain:

A timing chain that connects the camshaft and the crankshaft in a vehicle engine (such as in an automobile) and coordinates the opening and closing of the engine's valves. The timing chain ensures that the piston, crankshaft and valves, including the camshaft, work together in harmony. It transfers the rotational motion of the crankshaft to the camshafts. The timing of the opening and closing of the cylinder valves is crucial in a typical four-stroke engine. If the timing chain is stretched (or even torn), it can no longer perform this task and, in the worst case, even lead to engine damage.

Specifications of Timing System-Maxus Timing Chain:

Notices:

1.Open the packaging, check the products carefully, and take them gently.

2.Remove the negative electrode cable of the battery.

3.Remove the front hood of the engine and the parts that hinder the operation.

4.Turn the bend so that the 1st cylinder piston is in the compressed top dead center position, and align the timing marks on the camshaft and crankshaft sprocket, as shown in Figure 1. There are two timing marks on the camshaft sprocket, one is the first cylinder piston in the top dead center timing mark, then the first cylinder inlet valve and exhaust valve are closed; Second, the fourth cylinder piston is in the top dead center when the timing mark, then the fourth cylinder intake valve and exhaust valve are in the closed position. Make sure you know which cylinder is at top dead center of compression.

5.Remove the bolts on the camshaft sprocket, and remove the timing chain and camshaft sprocket.

6.If the crankshaft sprocket needs to be replaced, use the puller to remove the sprocket. When installing the new sprocket, the chain and chain slot should be aligned to prevent loosening.

7.Install the timing chain on the camshaft sprocket, fix the sprocket, make the chain suspended, align the timing mark on the camshaft and crankshaft sprocket. Align the locating pin holes on the sprocket with the locating pin holes on the camshaft, and then install the sprocket on the camshaft. Camshaft sprocket bolt tightening torque is 20N·m.

8.Use oil to lubricate the timing sprocket and chain.

9.Turn the crankshaft twice to check whether the engine timing mark is aligned. If the timing markers are not aligned, repeat the preceding steps

FAQ

Q1. Can I have a sample order for synchronizer?

A:Yes, we welcome sample order to test and check quality

Q2. How to proceed an order for synchronizer?

A2. Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production

Q3. When will make delivery?

A3.:Delivery Time Sample Order:1-3 days after receipt of the full payment.

Stock Order:3-7days after receipt of the full payment.

Q4. After-sales service?

A4:3 months warranty.If you find any defective accessories first time. Send us the pictures or video. As an experienced manufacturer, we will provide you with new parts free of charge for replacement in the next order. You can re guarantee the quality and after-sales service.

Q5: How do you make our business long-term and good relationship?

A5:. We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q6. Can you produce according to the samples?

A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. Do you test all your goods before delivery?

A7: Yes, we have 100% test before delivery
